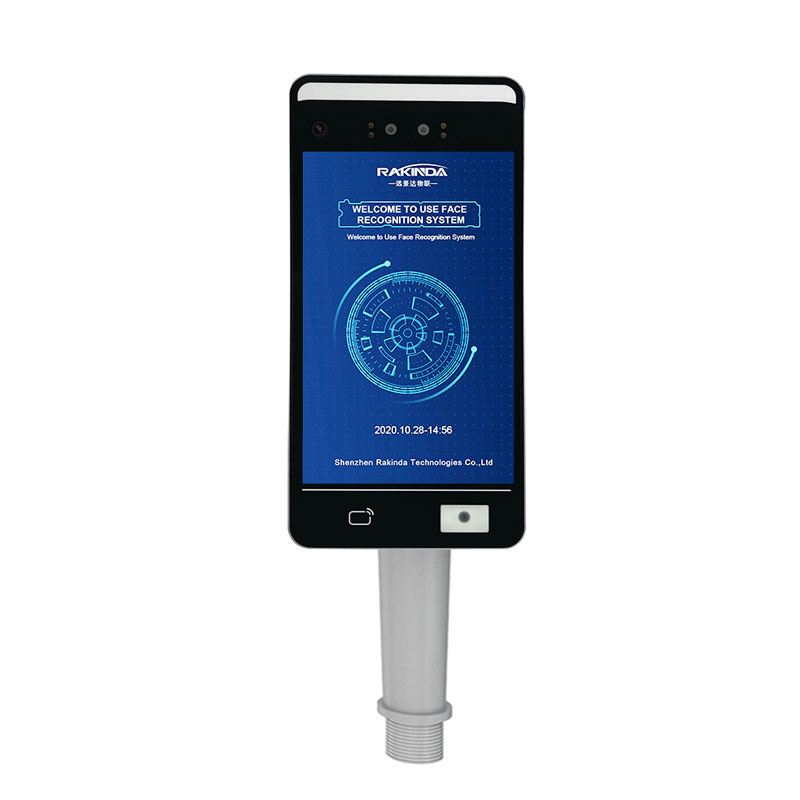

F7 RGB and IR Camera Facial Recognition Terminal

Share :
  • Product Description
  • Product Parameters
  • Download

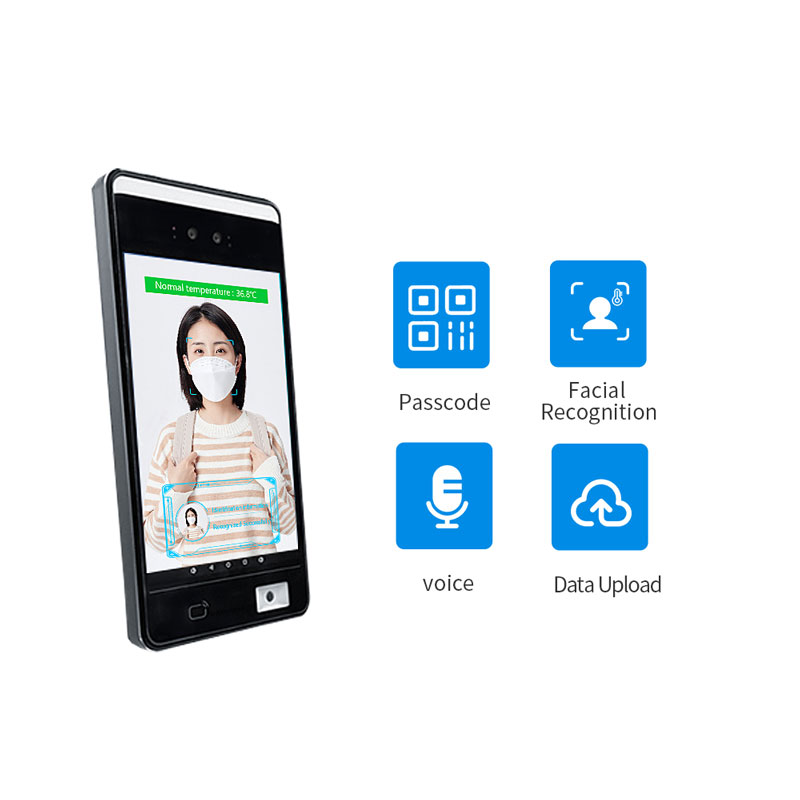

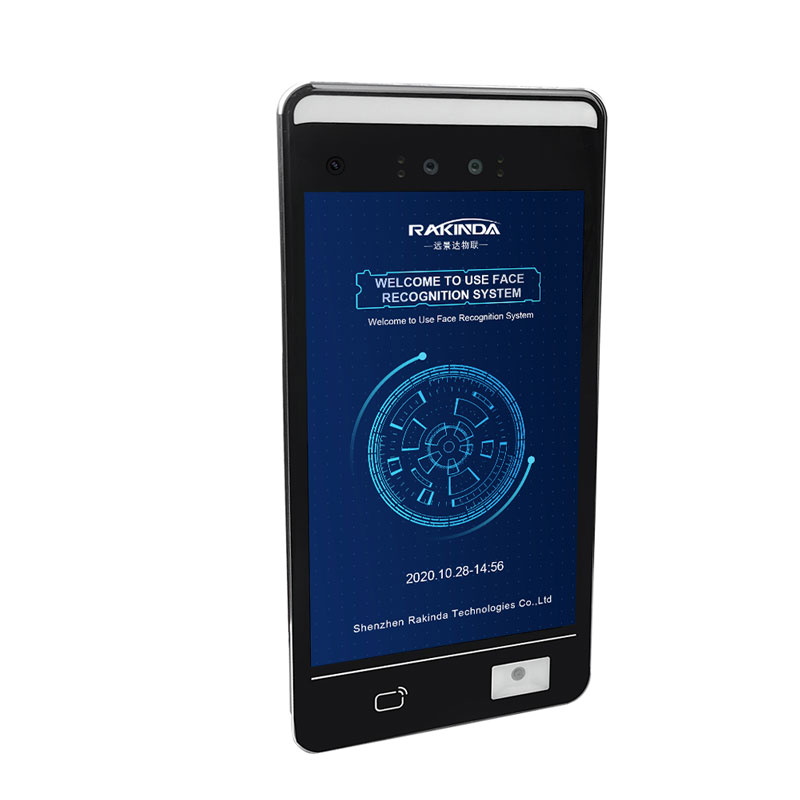

The product is an industrial-grade visual face recognition all-in-one machine designed to meet the high-volume, high-performance, and customization demands of face recognition applications. It uses advanced face recognition algorithms and is equipped with a 200W RGB+IR dual-lens camera, supporting WIFI+10/100M networking and a rich set of security interfaces to provide a secure and convenient user experience.


The product supports live detection and dynamic face recognition, enabling user-independent identity verification, entry/exit management, and attendance management. It is suitable for various scenarios requiring face recognition, such as office buildings, hotels, schools, shopping malls, communities, public services, train stations, and museums, helping to achieve intelligent security control.


The product features an aluminum alloy housing and a 6.95-inch full-angle IPS LCD screen with a resolution of 600*1024, supporting touch screen operation. It runs on Android 11.0, with a quad-core 64-bit Cortex-A55 CPU and 2GB of memory and 16GB of storage. It supports multiple communication methods, including Ethernet, WIFI, and 4G (optional), and multiple recognition methods, including face recognition, card swiping, ID card swiping, and QR code scanning (optional).

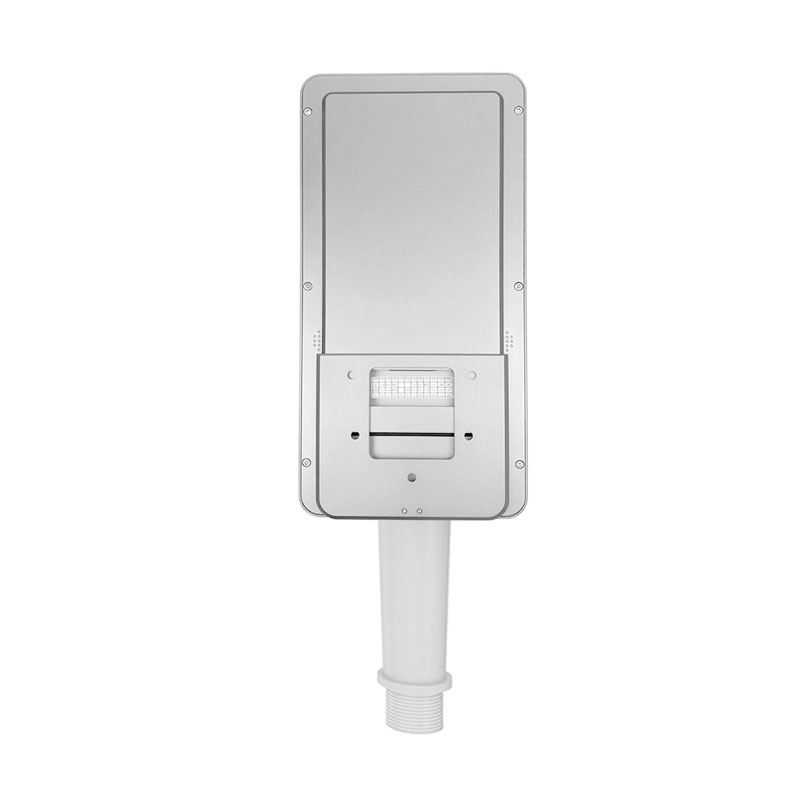

The product supports four installation methods: wall-mounted, gate, floor-standing, and desktop, and is suitable for both indoor and outdoor environments.


F7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition TerminalF7 RGB and IR Camera Facial Recognition Terminal


Face recognition machine

product features

major function

Face recognition, access control

service environment

Indoor and outdoor

enclosure

Aluminum alloy material, color

camera

type

RGB

IR

resolution ratio

Two million pixels

Two million pixels

iris diaphragm

F2.0±5%

F2.0±5%

focal distance

4.3mm±5%

4.3mm±5%

Software wide dynamic

voluntarily

not have

Vertical wide Angle

65°

65°

Horizontal wide Angle

40°

40°

Infrared light supplement

support

White fill light

support

Core parameters

system

Android 11.0

CPU

Quad-core 64-bit Cortex-A55 with the highest main frequency of 2.0GHz

SC

Memory of 2G, the storage of 16G

human-computer interaction

display screen

6.95-inch, full view, 170 ° IPS LCD screen, 600 * 1024 resolution

touch screen

support

Human sensing module

[Optional selection] Support

Human body temperature measurement module

[apolegamy]

Test accuracy: 0.1℃

test error:≤±0.5℃

Temperature measurement distance: the recommended use distance is 50cm

Operating temperature: 15℃ ~40℃

communication mode

Ethernet

10 / 100Mbps for Ethernet

WIFI

Compliance to IEEE802.11b/g/n (2.4G)

4G

[Optional selection] Support

RM

human face

support

swing card

[Optional selection] Support

Brush ID card

[Optional selection] Support

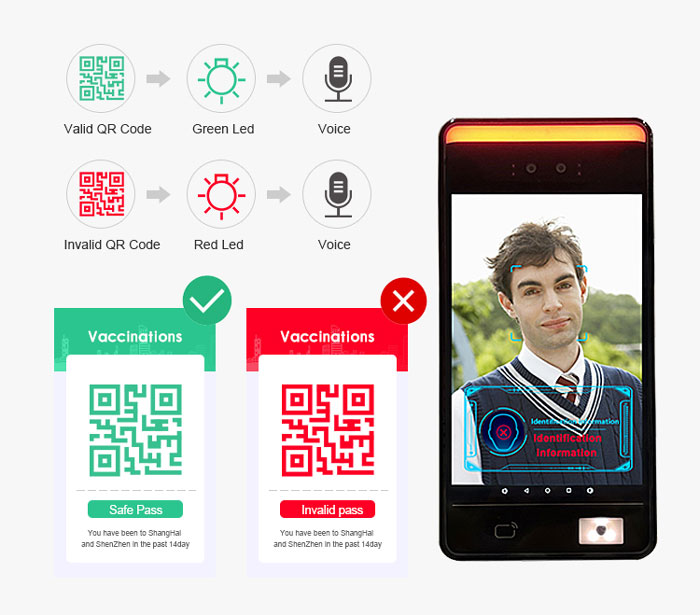

two-dimension code

[Optional selection] Support

joggle

data interface

USB 2.0*1

electric relay

Relay * 1

gorge line

RS485 *1

Weigen

26bit / 34bit protocol

source

adapter

DC12V / 2A power supply

Environmental requirements

working temperature

-20℃~60℃

Working humidity

20% to 90% (in the noncondensation water droplet regime)

static electricity ESD

IEC61000-4-2,LEVEL3

levels of protection

I P65 (This item is not supported in the temperature measurement version)

way to install

Four ways

Wall-mounted plate, brake plate, landing version, desktop version
