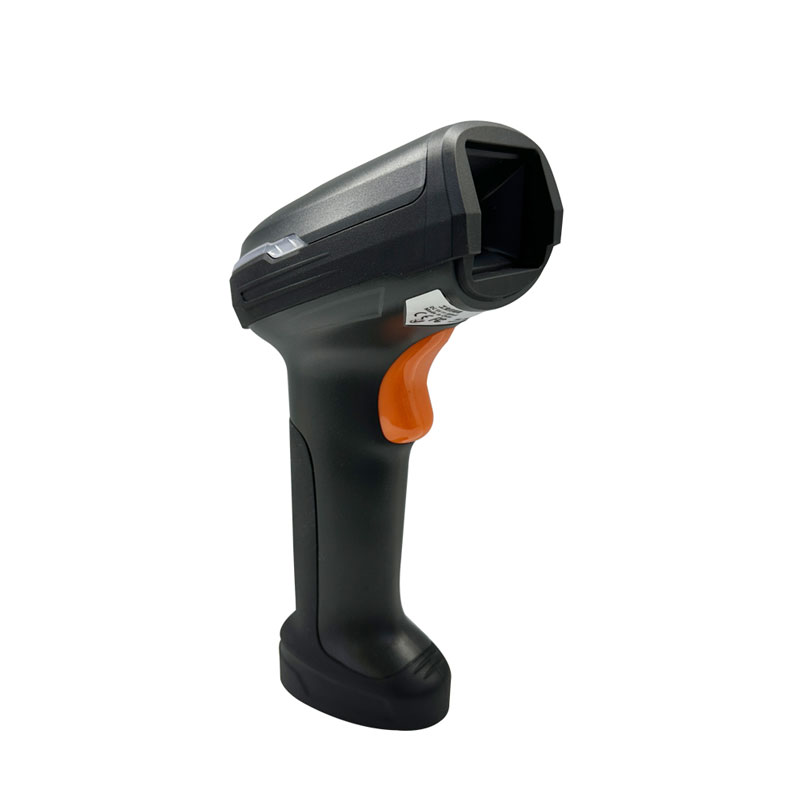

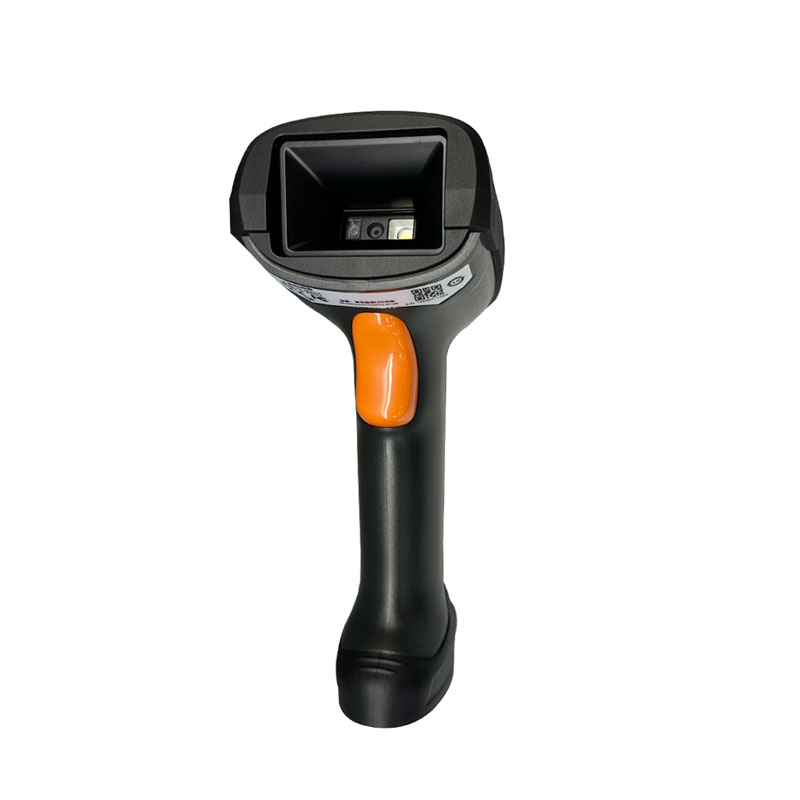

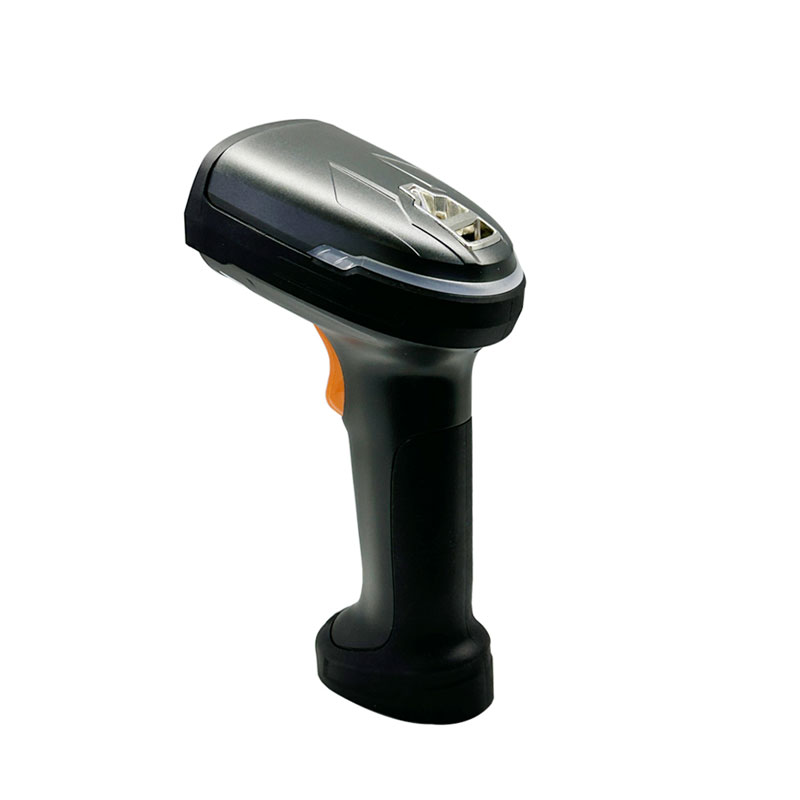

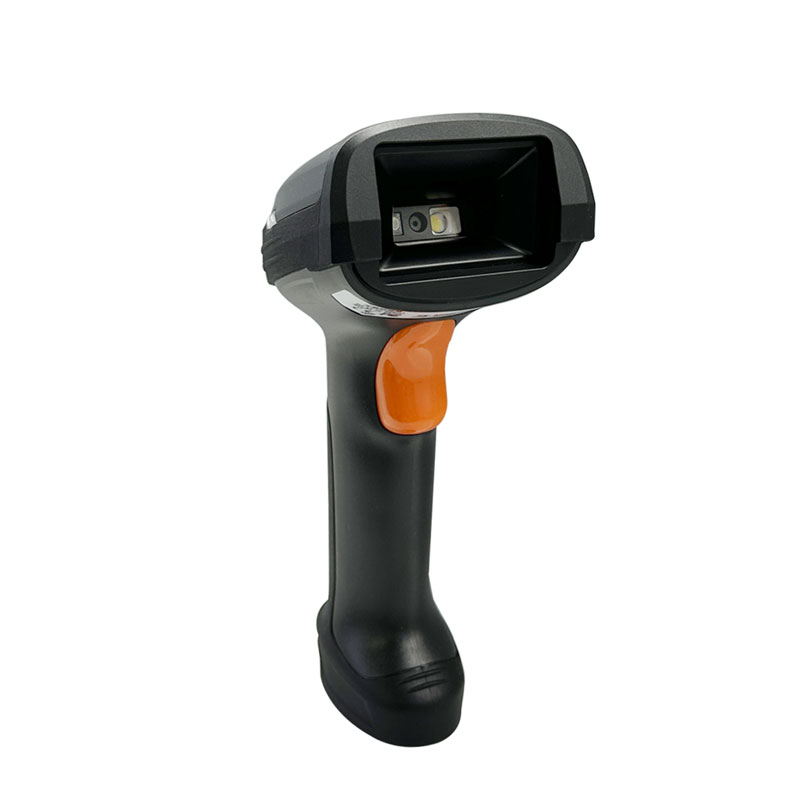

S2-2 1D Handheld Industria Wireless Barcode Scanner Reader

Share :
  • Product Description
  • Product Parameters
  • Download

RAKINDA S2-2 is a high-performance, high-reliability scanner for industrial application environments. It has the advantages of anti-fall, waterproof, and dustproof. It has a firm and comfortable grip and is not easy to fatigue.



Handheld Industrial Barcode Scanner Product Features:

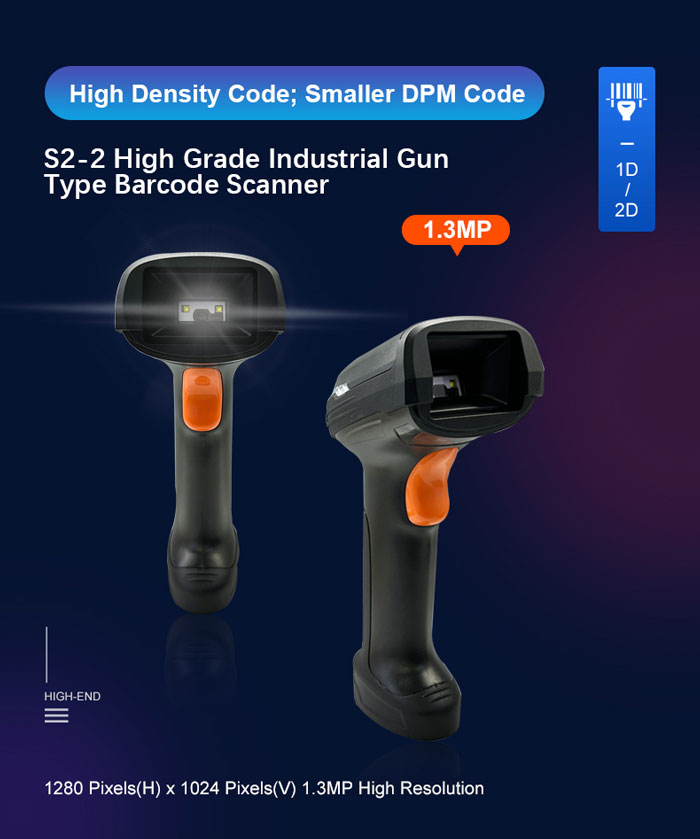

* Using 1280*1024 high-resolution, high frame rate image sensor, can quickly identify higher-precision barcodes;

* Ergonomic design, Gun Type shape, comfortable operation, long-term work without fatigue, product design in line with industrial environment, more durable;

* Intelligent light source control, active memory and intelligent switching of the best decoding light source;

* Intelligent debugging mode, intelligent scanning settings for direct component marking (DPM) barcodes such as laser engraving and dotting, providing the best decoding settings for fixed application scenarios;

* A variety of communication interface options, the data cable can be replaced quickly, and the plug and play is more convenient.


S2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner ReaderS2-1 1D Handheld Industria Wireless Barcode Scanner Reader

Parameters

Scanning performance

Resolution

1280 Pixels(H) x 1024 Pixels(V)

Illumination

White light

Focus

S2-1 Green stripS2-2 Red strip

Reading mode

Key scanning, Automatic induction scanning

Decode Capabilities

1D

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93

Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,

IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 ,

RSS-14 Expanded , RSS-14 Limited Composite Code-A ,

Composite Code-B , Composite Code-C

2D

Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417Aztec, Maxicode

Reading accuracy

1D : ≥3 mil ; 2D : ≥5 mil

Typical Depth of Field

Model

S2-1

S2-2

Code 39 (3mil)

  55mm~150mm

40mm~70mm

Code 39 (5mil)

  45mm~250mm

30mm~100mm

Data Matrix (5mil)

40mm~60mm

40mm~70mm

100%UPCA (13mil)

 40mm~500mm

30mm~100mm

Field of view

Level 41° (H)Plumb 35° (V);

Print contrast

≥20%(UPC/EAN 100% , PCS 90%)

Dimension

Physical dimension

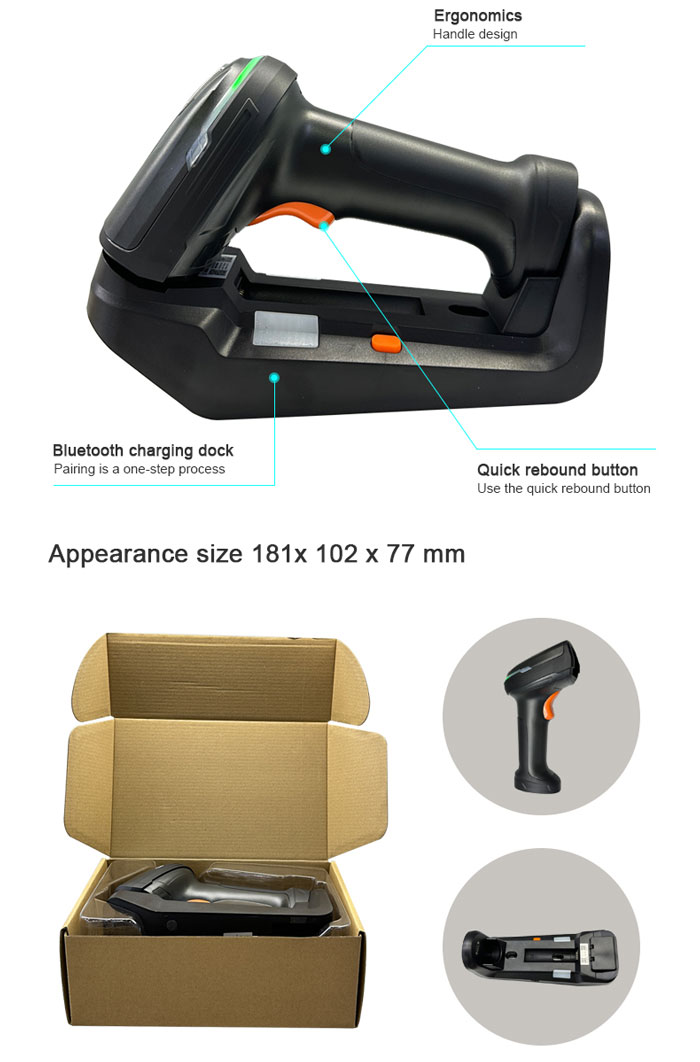

181x 102 x 77 mm

Electrical parameters

Weight

150g (cable not included)

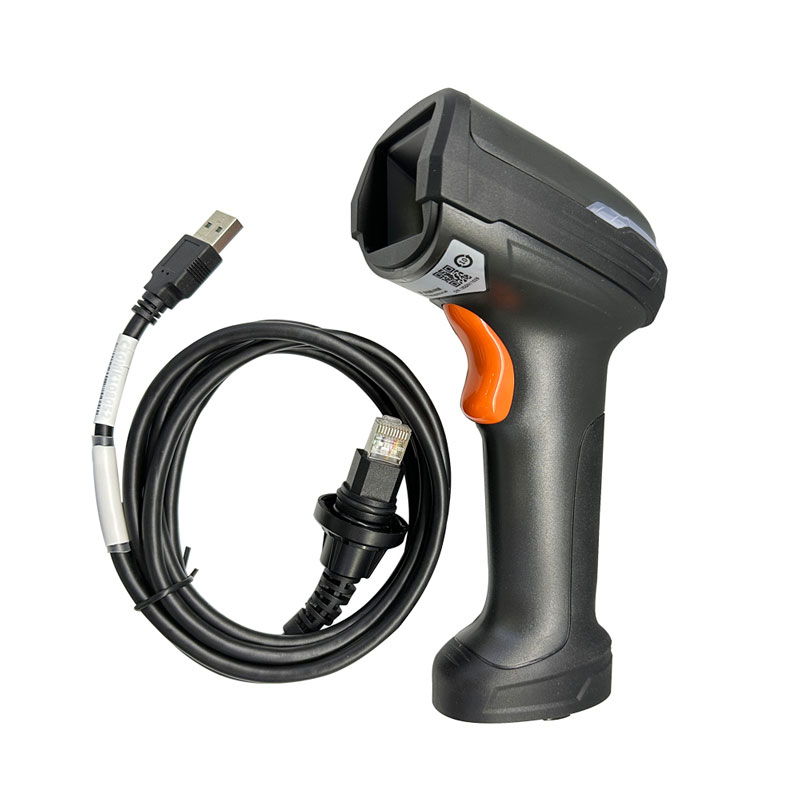

Communication interface

USB RS-232Virtual COM Port

Data cable length

Straighten 2 meters

Prompt way

BuzzerLED Indicator light, Vibration motor

Operating Voltage

DC 5V±5%

Working current

300 mA ±5%Typical value, 400 mA ±5%Maximum value

Stand-by current

100 mA ±5%

Environmental parameters

Operating temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Relative humidity

5%~95%(no condensation)

Static Protection

±12 kV(Air discharge)±8 kV (Direct discharge)

Drop height

1.8m

Degree of protection

IP65

Regulatory

FCC Part15 Class BCEEMC Class B
