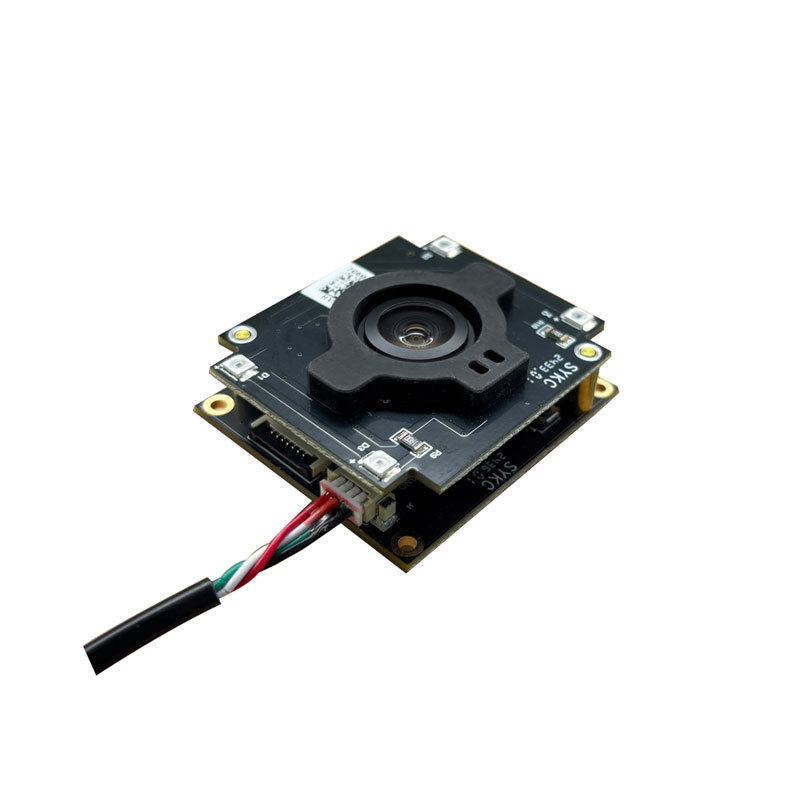

RD920 Palm Vein Module

Share :
  • Product Description
  • Product Parameters
  • Download

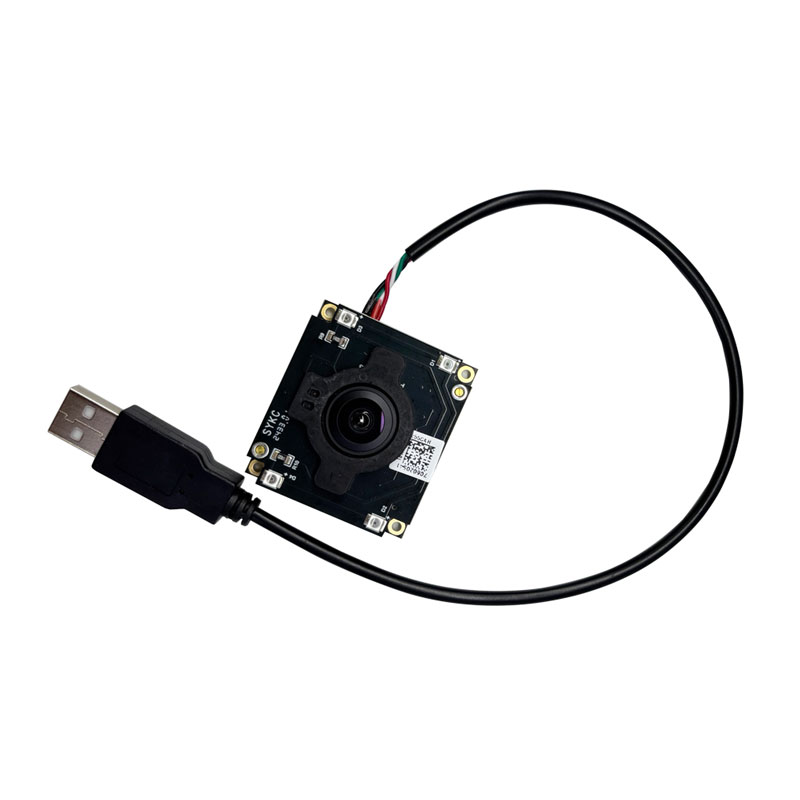

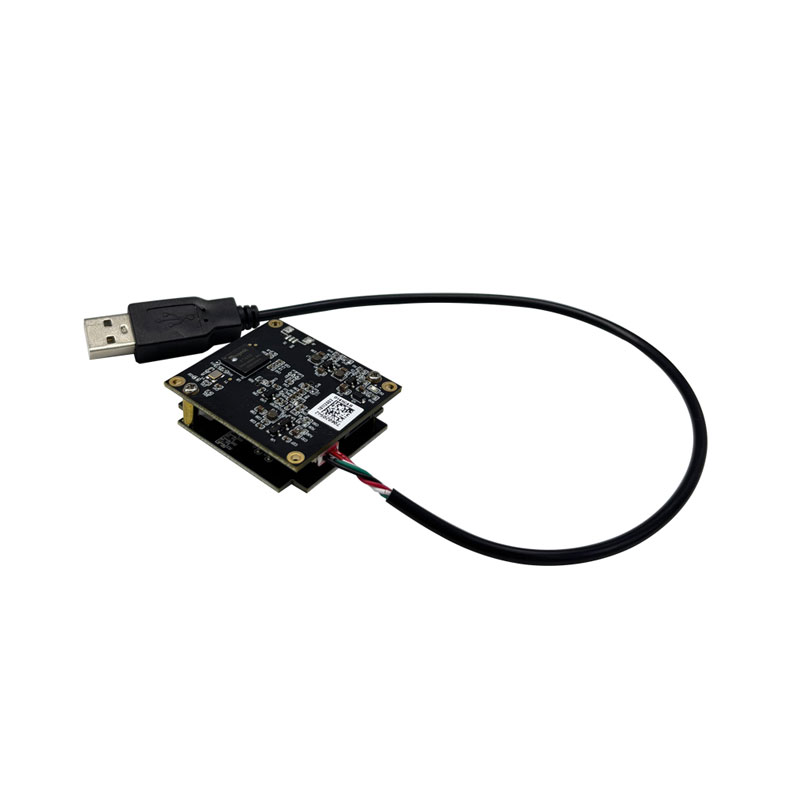

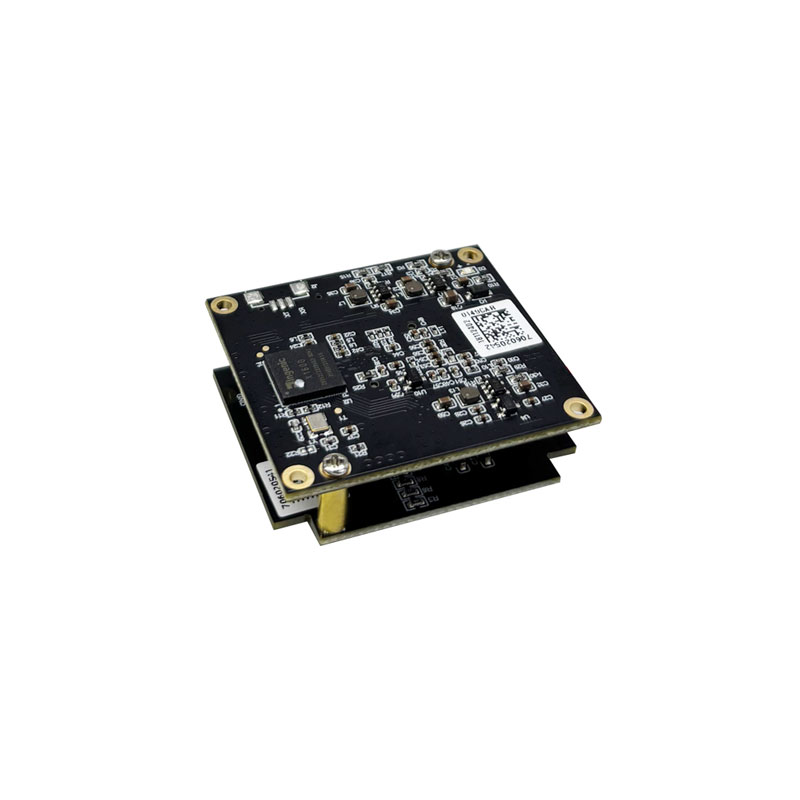

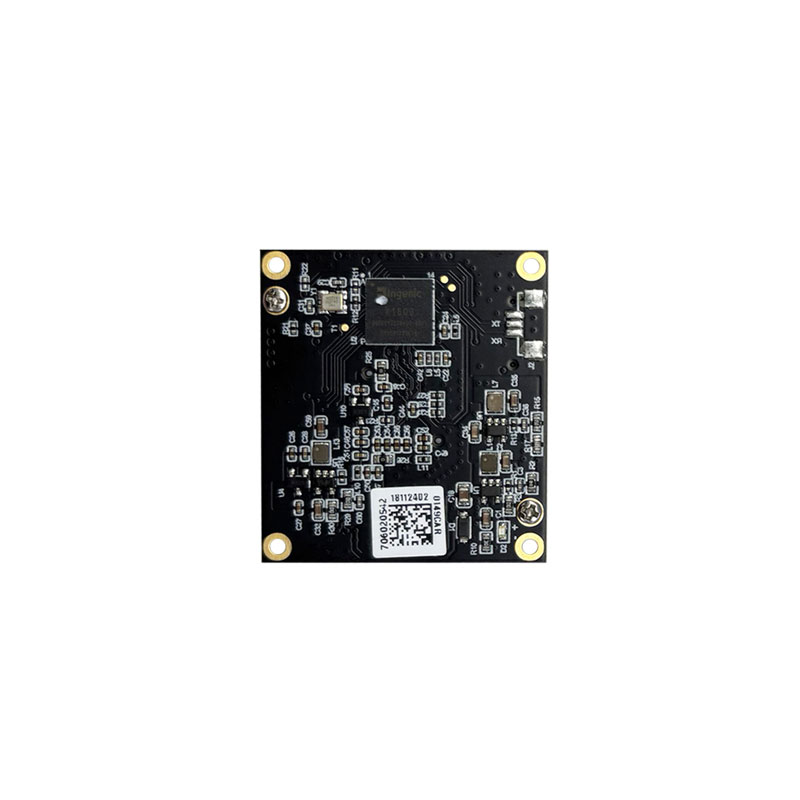

Designed for seamless integration into access control, healthcare, and financial systems, the RD920 Palm Vein Module offers unmatched reliability in identity verification. Its 960×720px imaging resolution and ±20° angular tolerance accommodate natural hand movements, while the 850nm infrared illumination ensures consistent performance in low-light conditions. The module’s compact design (45×40×17.7mm) and versatile interfaces (USB, serial) simplify installation in indoor or semi-outdoor environments. With support for 1:1 and 1:N matching modes, it is ideal for high-traffic scenarios requiring rapid authentication, such as hospitals, corporate facilities, and secure payment terminals.



Key Features

- Broad Compatibility: Works with Windows, Linux, and Android systems.

- High-Capacity Storage: Stores up to 10,000 palm templates.

- Adaptive Recognition: Tolerates horizontal/vertical palm angles up to ±20°.

- Low Power Consumption: Standby current of 0mA; peak current <700mA.

- Durable Construction: Requires tempered glass cover (≤1.5mm thickness) for scratch resistance.


RD920 Palm Vein ModuleRD920 Palm Vein ModuleRD920 Palm Vein ModuleRD920 Palm Vein ModuleRD920 Palm Vein ModuleRD920 Palm Vein ModuleRD920 Palm Vein Module

product model

RD920

dimensions

45X40X17.7mm

image dimensions

960*720pt

Interface

JST-1.25-4P    FPC-1.0-7P

Wait for electromechanical current

0mA

working temperature

-15~55

Working humidity

20% to 80% (no condensation)

working voltage

4.8V-6.3V

rated current

<150mA

peak point current

<700mA

operating system

Support Windows, Linux, Android
