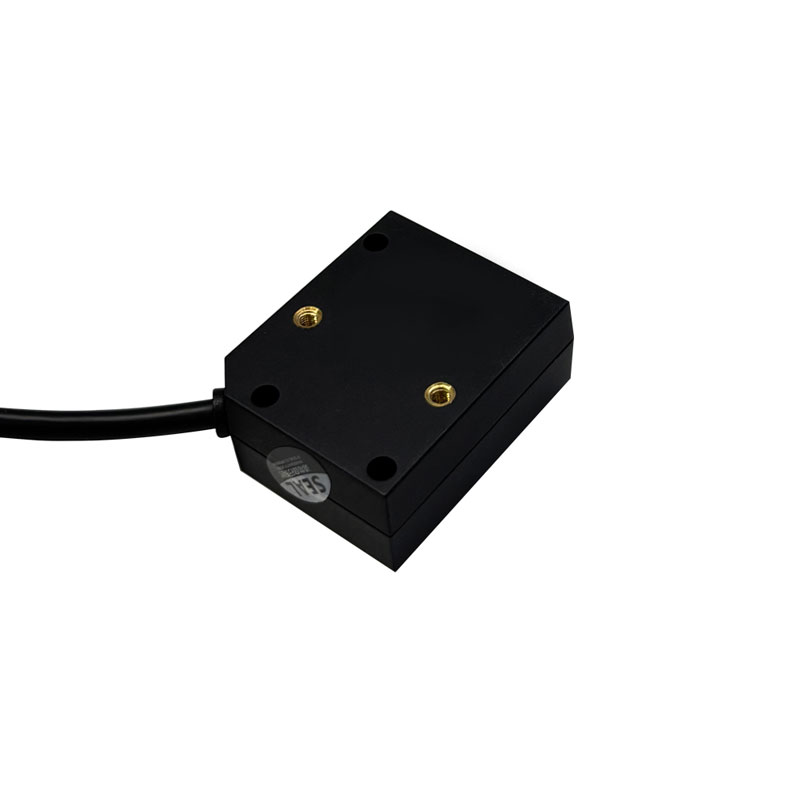

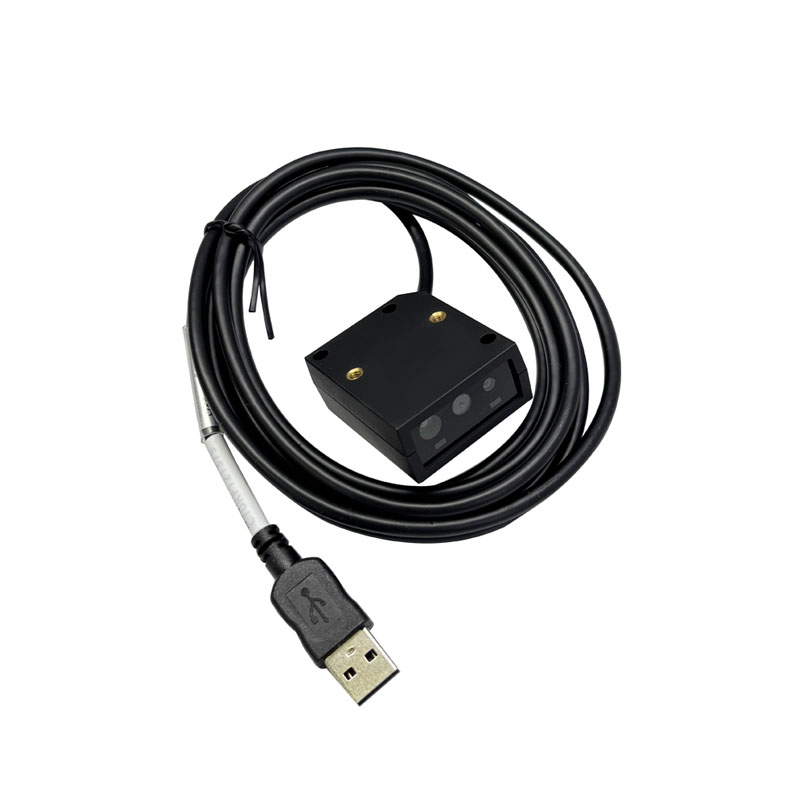

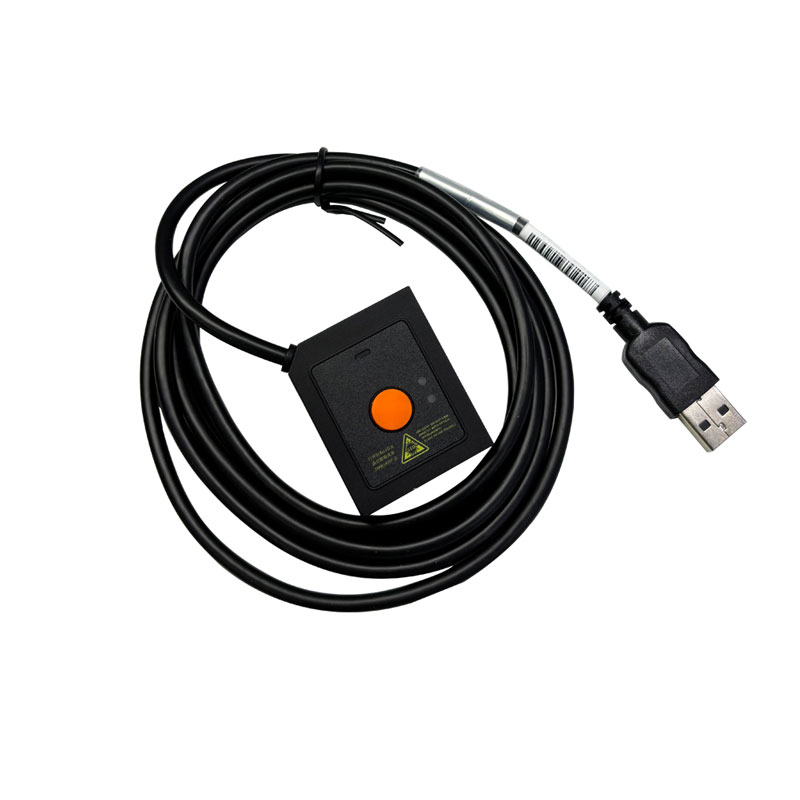

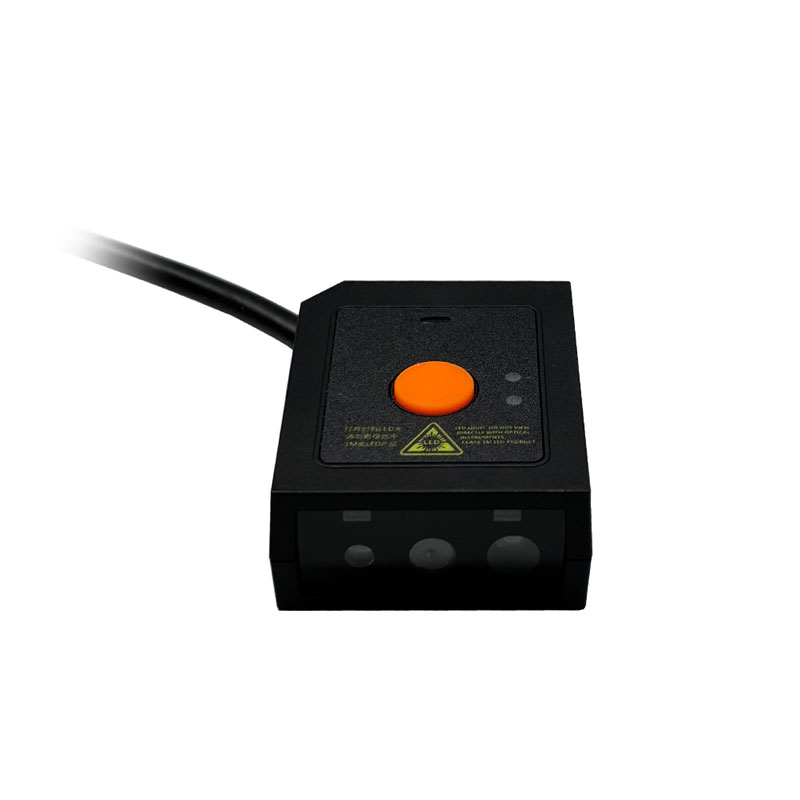

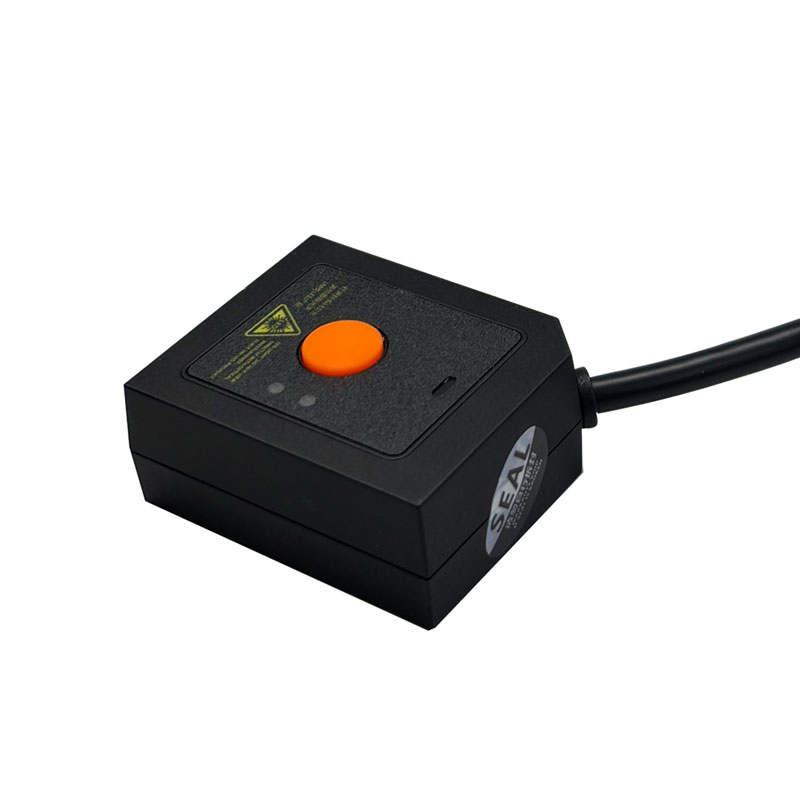

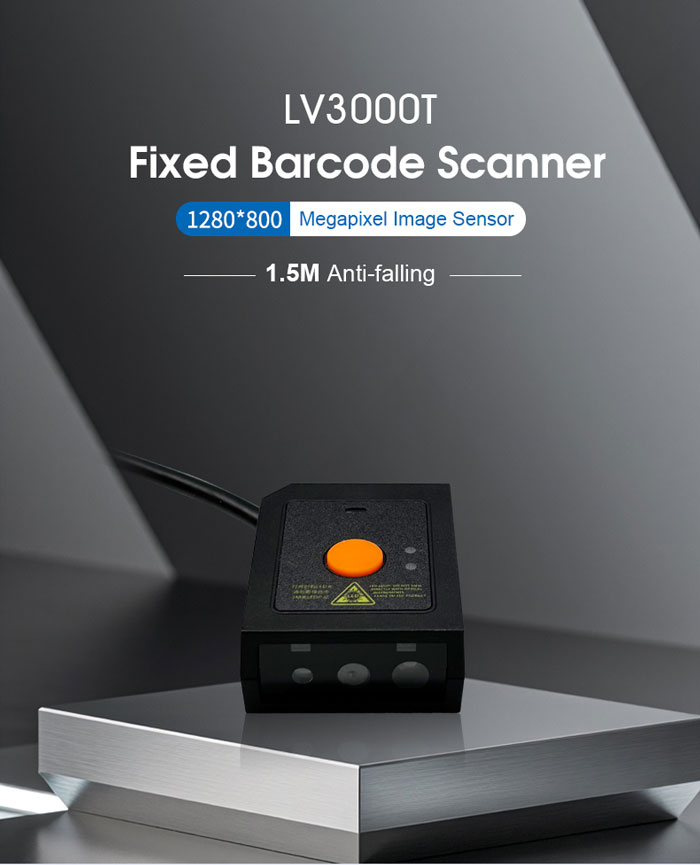

LV3000T Embedded Barcode Scanner Module

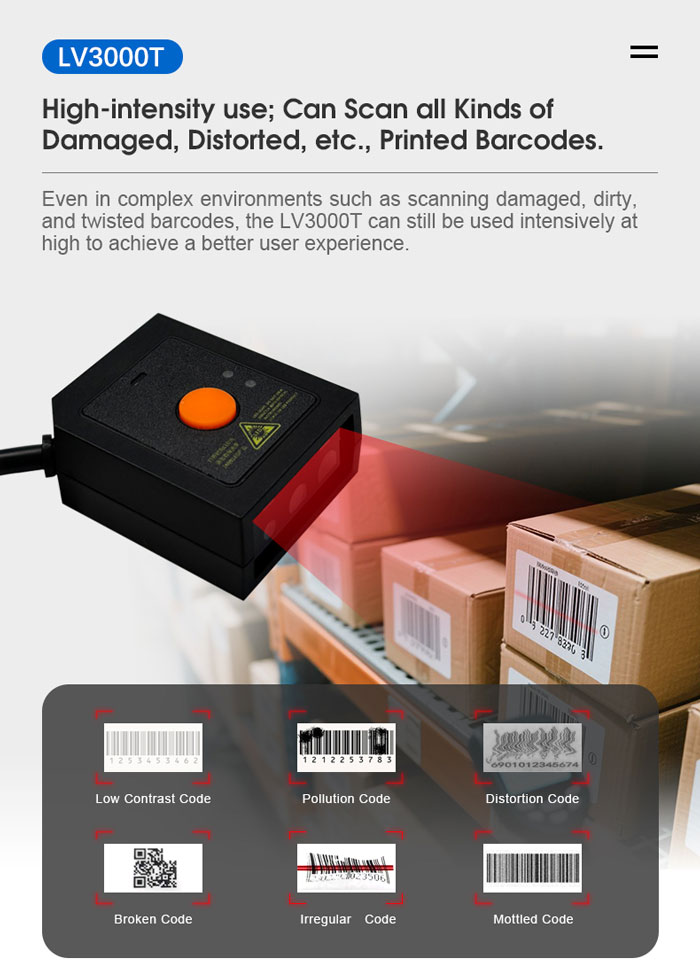

Compact embedded scanner module (37x45mm). Reads distorted/dirty barcodes. IP54-rated, -20°C~50°C range. USB/RS232 interfaces. For self-service terminals, medical equipment, and electronic test systems
Share :
  • Product Description
  • Product Parameters
  • Download

Integrate seamless barcode scanning into self-service kiosks, medical equipment, and electronic test devices with Rakinda’s ultra-compact LV3000T (37x45x18.2mm). This fixed-mount scanner combines a high-resolution 1280x800 sensor and 60FPS frame rate to capture low-quality barcodes in distorted lighting. Its 46° wide angle minimizes alignment issues, while IP54 sealing ensures reliability in dusty/wet conditions. Supports USB/RS232 interfaces and requires minimal power (5V±5%). Perfect for embedded systems, smart vending machines, and pharmacy automation.



Key Features for High-speed Barcode Scanner:

* Embedded Barcode Scanner - OEM integration-ready

* High-Accuracy 1D/2D Decoding - Down to 4mil

* Ultra-Compact Design (30g) - Fits confined spaces

* Wide Temp Range (-20°C~50°C) - Clinic to factory

* Dual Illumination - White LED + red aiming line


LV3000T Embedded Barcode Scanner ModuleLV3000T Embedded Barcode Scanner ModuleLV3000T Embedded Barcode Scanner ModuleLV3000T Embedded Barcode Scanner ModuleLV3000T Embedded Barcode Scanner ModuleLV3000T Embedded Barcode Scanner Module

Scan Performance

Resolution

1280*800

Field of view

Horizontal 46°(H)·Vertical 29°(V)



Symbologies

2D

1D

Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417 , Aztec ,MaxiCode

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 ,

Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited

Composite Code-A ,Composite Code-B , Composite Code-C

Reading mode

Key mode, serial command trigger mode

Reading accuracy

1D : ≥4 mil ; 2D : ≥7 mil

Typical reading depth of field

Code 39 (4mil)           40mm ~110mm

Data Matrix(10mil)    35mm~300mm

100%UPCA (13mil)  35mm ~320mm

Lighting

White light LED

Focusing

Red LED line

Print contrast

≥30%

Mechanical and Electrical Parameters

Outer dimensions

37 (W) × 45(D) × 18.2 (H)(mm)

Weight

About 30g

Communication interface

USB RS-232 Virtual COM Port

Prompting mode

Beep, LED indicator

Working voltage

DC 5V±5%

Working current

200 mA ± 5% (typical), 350 mA ± 5% (maximum)

Wait for the electromotive force

100 mA ±5%

Enviromental Parameter

Working temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Relative humidity

5%~95% (no condensation)

Electrostatic protection

± 12kV (air discharge), ± 8kV (direct discharge)

Drop height

1.5 meters

Levels of protection

IP54

International Certification

Levels of protection

FCC Part15 Class B CE EMC Class B
