S1 Desktop Mobile Payment Box Barcode Scanner

Share :
  • Product Description
  • Product Parameters
  • Download

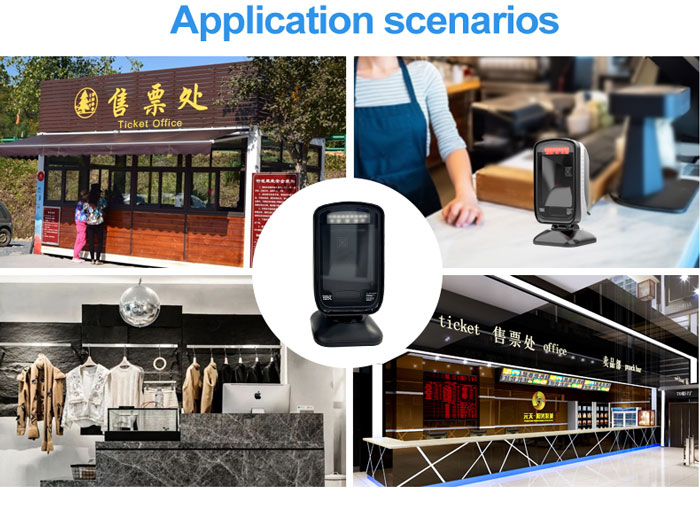

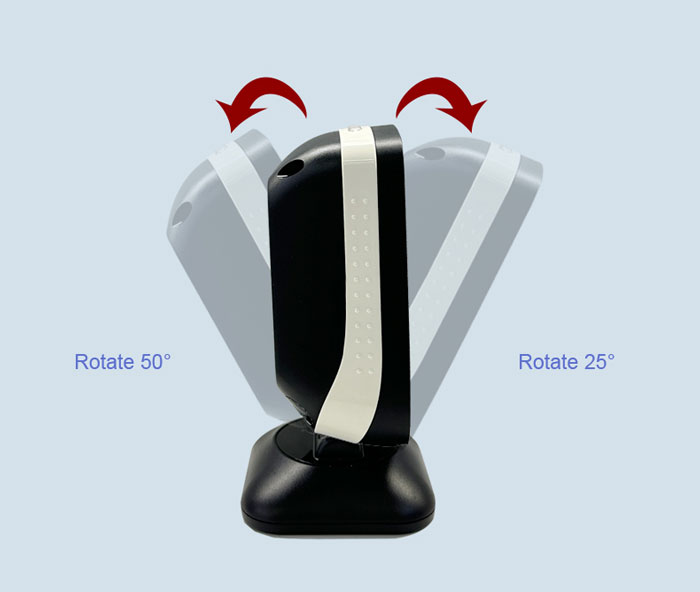

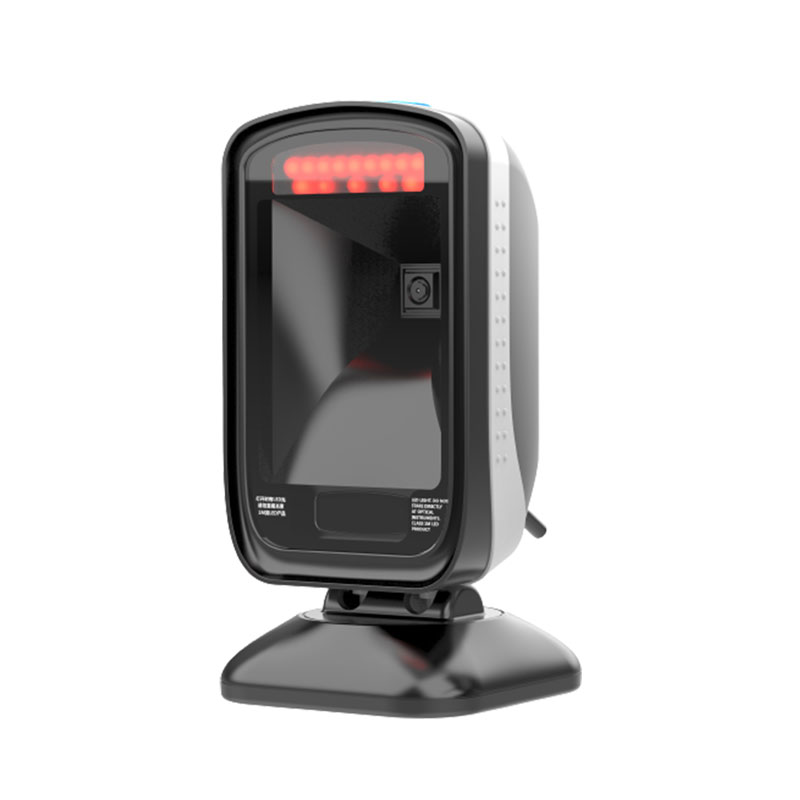

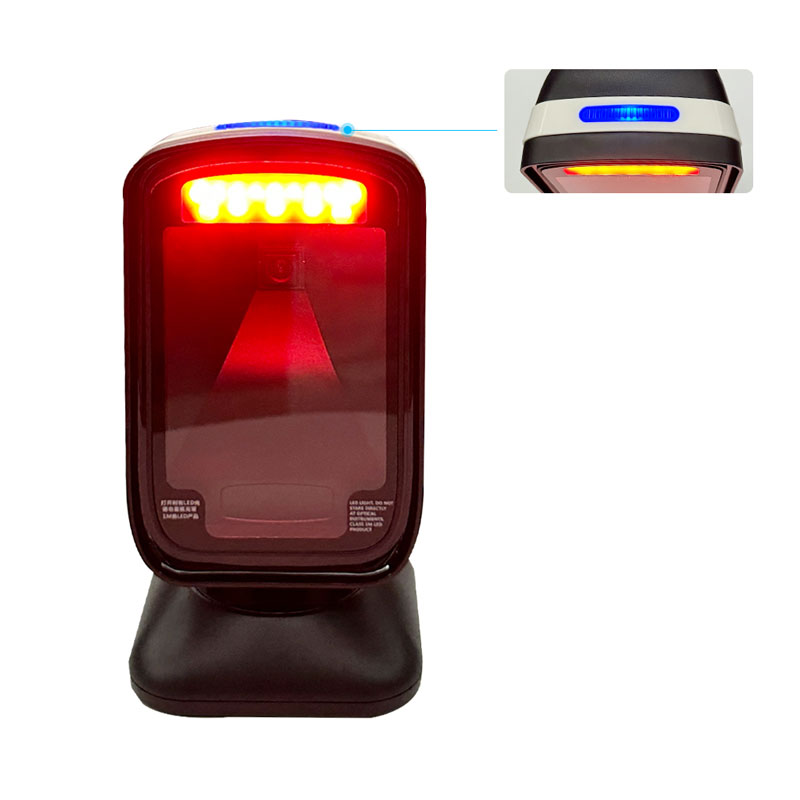

S1 has a generous appearance design and a rotatable base, which greatly facilitates various on-site application scenarios. It has an eye-catching blue LED indicator light and a loud buzzer to remind you of successful code reading. The internal engine is equipped with high-brightness LEDs and high-quality photosensitive modules. The theoretical working life of the LEDs can reach 100,000 hours. The whole machine does not have any moving parts. , which greatly improves the life of the entire machine. S1 supports USB 1.1 (HID Keyboard, Virtual COM Port) RS-232 (9.6~115.2Kbps) and provides users with more communication options.

RD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode ScannerRD8402V Desktop Mobile Payment Box Barcode Scanner

Working parameters

Pixel

1280 pixels(H)x 800pixels(V)

light source

617nm LED

Scanning distance

0 mm - 160 mm @UPCA -13 mil 100 %, PCS 90%

Field of view

51° (H) x 34.5° (V)

Scanning method

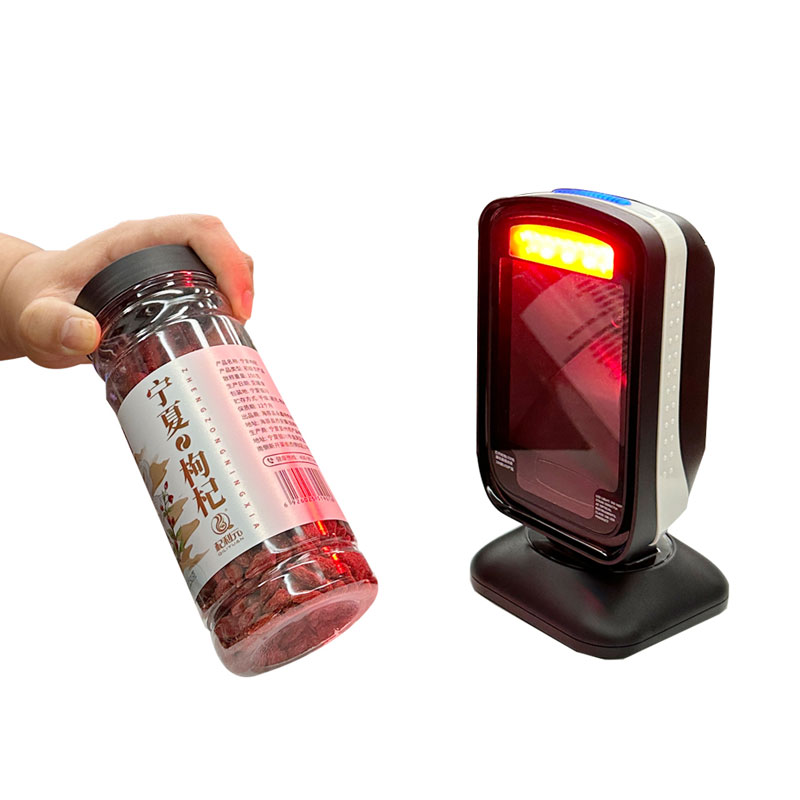

Induction triggered scan

Minimum resolution

0.127mm(5mil)@Code 39, PCS=90%

Printing contrast

>30%(UPC/EAN 100% , PCS 90%)

LED indication

Blue LED indication

Sound

Adjustable tone and volume buzzer

Communication interface

USB 1.1 (HID KeyboardVirtual COM Port) RS-232 (9.6~115.2Kbps)

Physical parameters

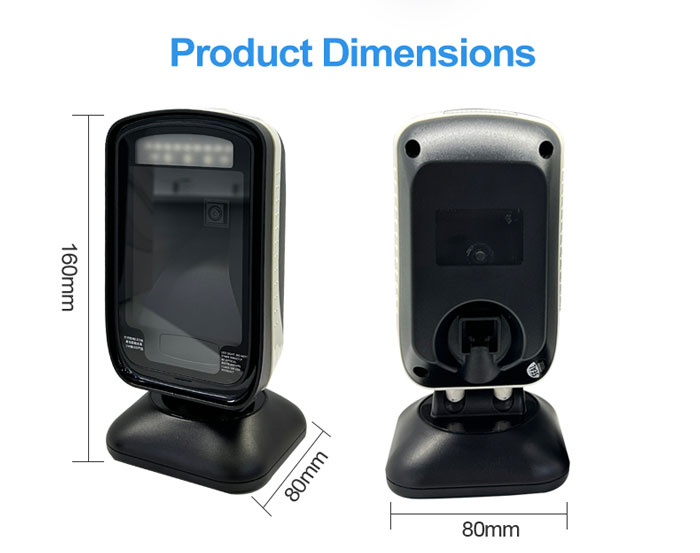

Size

160mm x 80mm x 80 mm

Weight

About 260 grams (excluding data cable)

Line length

Straighten 1.5 meters

Power parameters

Input voltage

5VDC±10%

Working current

170mA typical

Safety regulations

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environmental parameters

Operating temperature

0~50

Working humidity

5%~95% no condensation

Stored temperature

-40~+70

Ambient brightness

0~8,600Lux (fluorescence) 0~100,000Lux (daylight)

Fall resistance

Can withstand multiple drops from a height of 1.5 meters

Decoding type

1-D:

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded

Stacked bar code:

PDF417 MicroPDF417

2-D:

Data Matrix QR Code Micro QR Code(Support mobile phone screen code reading is turned off by default)


    None

0.4745s
