LV30 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine. Rakinda's two-dimensional decoder chip, the advanced image recognition algorithms and advanced chip design and manufacturing technology perfect fusion, which greatly simplifies the design of 2D bar code reader product design difficulty, establish two-dimensional video products, high performance, high reliability, low power Consumption of excellent benchmarking.

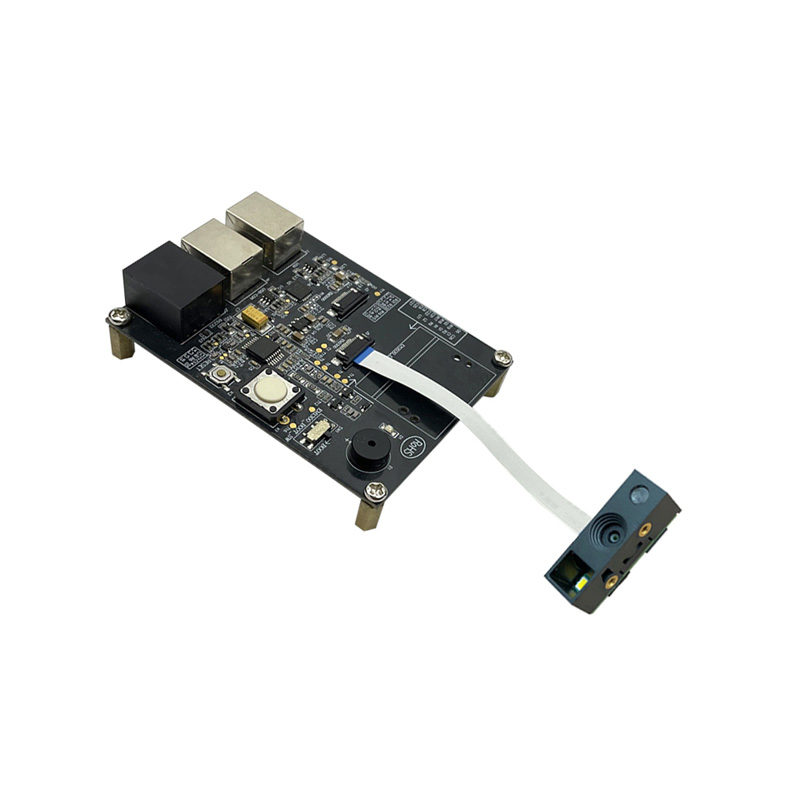

Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould.
Rakinda can supply user guide and intergration guide of barcode scanner to help you embed it into device.Confirguring scanner by scanning setting code in user guide.
|Image Sensor||752×480 CMOS|
2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
|Illumination||Red LED 612nm-624nm, 650nm laser|
|Ambient Light||0 ~ 100,000 LUX|
|Power Consumption||0.76 W|
|Operating Voltage||3.3±10% VDC|
|Current @ 3.3 VDC||Operating Current 230 mA|
Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)Sleep Current <5 uA
|Operating Temperature||-20℃~ +60℃|
