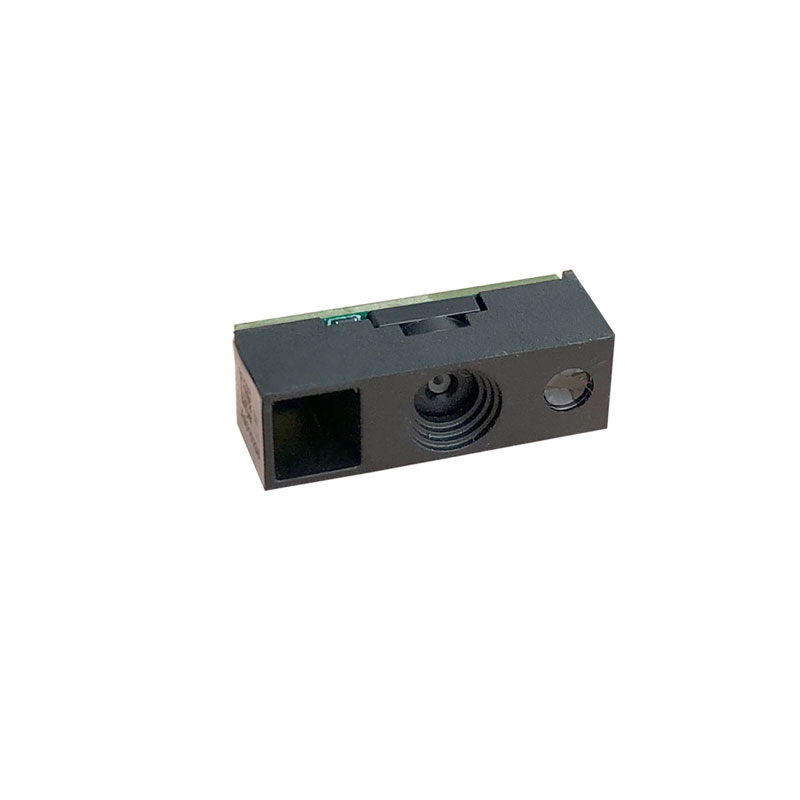

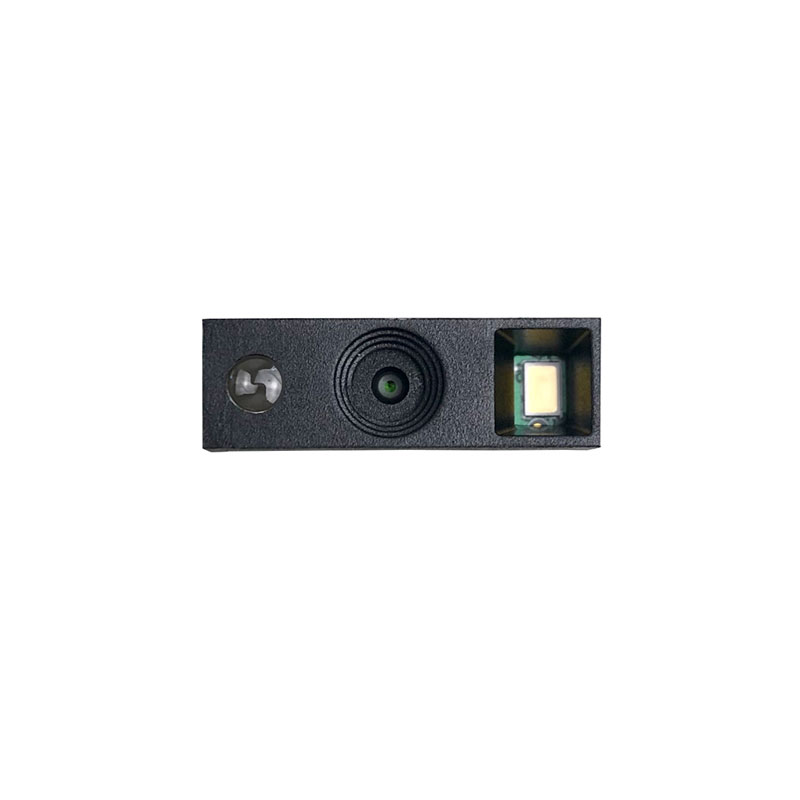

LV2097 2D barcode scanner module armed with latest technology, This module is only 21.5 x 9 x 7mm, which is our smallest scan engine so far. The power consumption of the whole machine is only 452mW. It can decode various 1D and 2D code on phone screen and poorly printed paper. When the phone screen is covered with protective fim or set to low level brightness, it can still decode the code easily.


LV2097 2D code scan engine supports both USB and TTL232 interface for easy integration in various applications.



Barcode Reader for PDA Features:

1.Delivers speedy and accurate scanning performance and supports mainstream 1D/2D barcode symbologies.

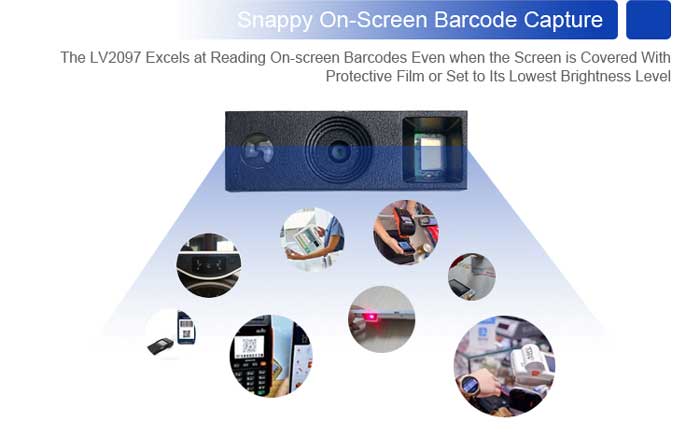

2. The LV2097 Excelsat Reading On-screen Barcodeseven When the Screen is Covered with Protectiveflmor Set to lts Lowest Brightness Level.

3. The LV2097 Supports USB and TTL-232 Interfacesto Meet Diverse Customer Needs.

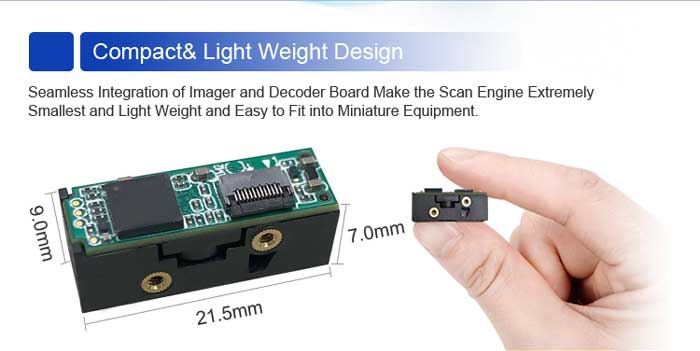

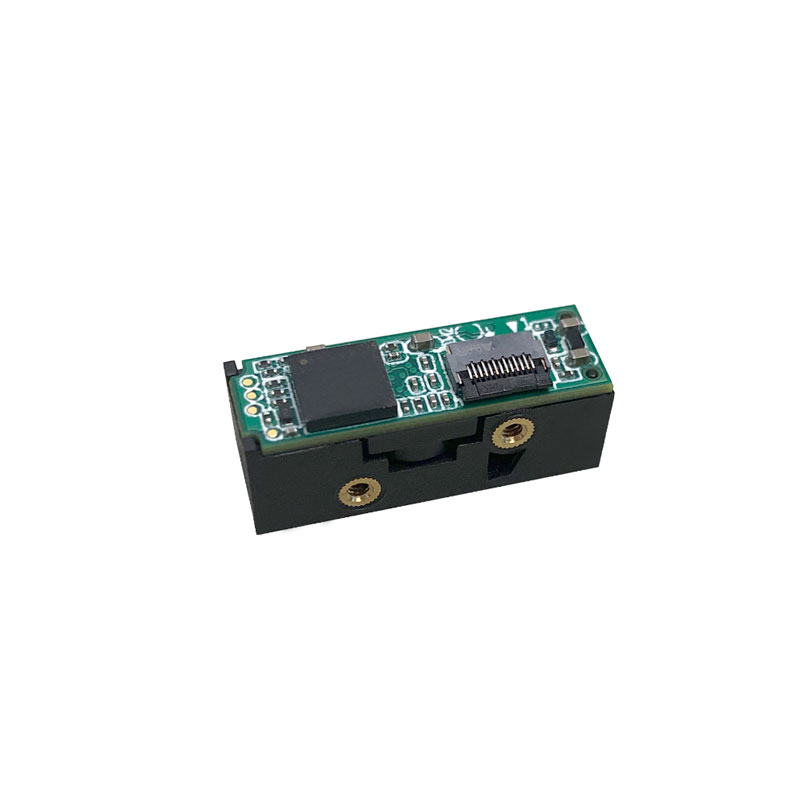

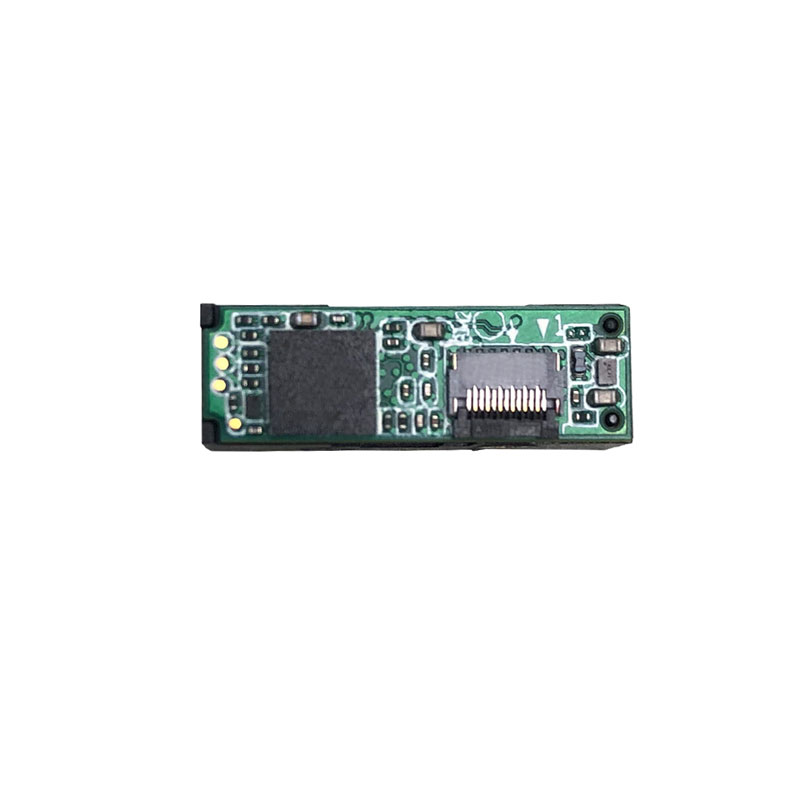

4.SeamlessIntegration of Imager and Decoder Boardmakes the Scan Engine Exremely SmallestAnd Lightweight and Easy to Fit into Miniature Equipment.

5.The Advanced MLDC Technology Incorporated in The scan Engine Helps Reduce Its Power Consumption Andprolonglts Service Life.


LV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner EngineLV2097 The smallest Barcode Scanner Engine

Performance

Image Sensor

640 480 CMOS

Illumination

Aiming


White LED

Red LED (625nm)

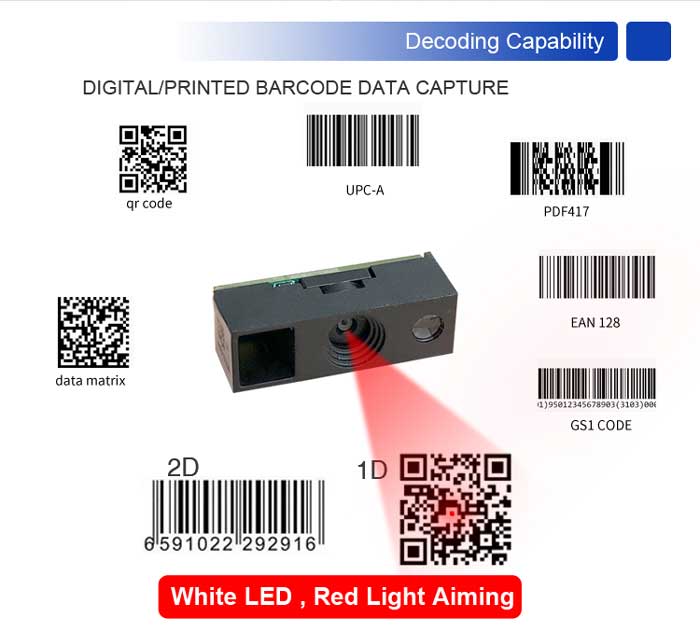

Symbologies

2D

PDF417, QR Code, Micro QR, Data Matrix.


ID

Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey

Resolution*


>3mil

Typical Depth of Field*


EAN-13 (13mil): 60mm-350mm

Code 39 (5mil): 40mm-150mm

PDF417 (6.7mil): 50mm-125mm

Data Matrix (1 Omil): 45mm-120mm

QR Code (15mil): 30mm-170mm

Min. Symbol Contrast*


25%

Scan Angle


Roll: 360。,Pitch: ±60°, Skew: ±60°

Field of View


Horizontal 42°, Vertical 31.5°

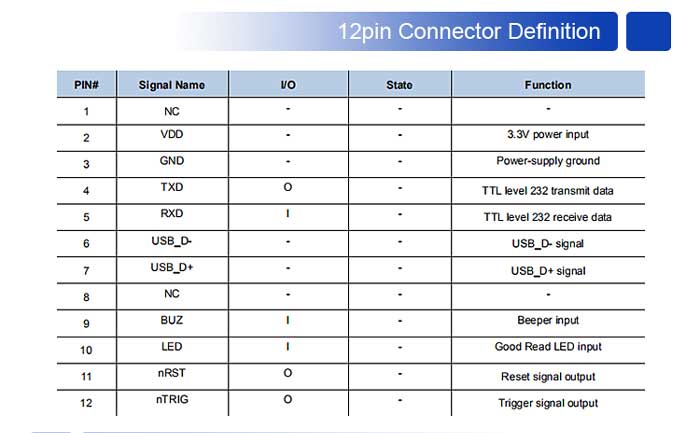

Mechanical/

Interface


TTL-232, USB

Electrical

Operating Voltage


3.3VDC±5%

Current@3.3VDC

Operating

138mA (typical)


Idle

11.8mA

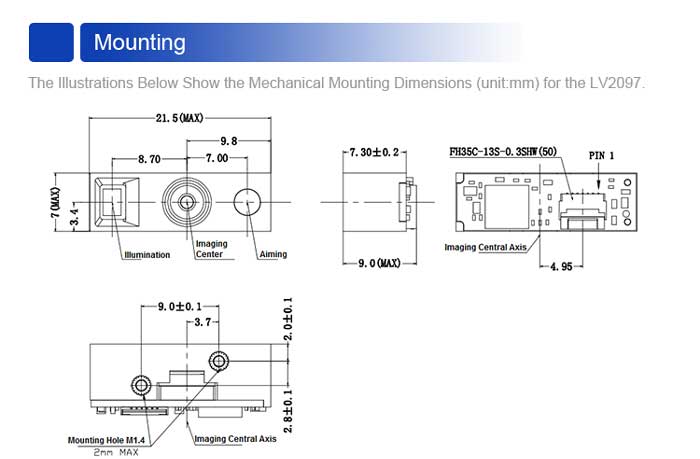

Dimensions


21.5(W) X9.O(D) x7.0(H)mm (max)

Weight


1.2g

Environmental

Operating Temperature


-20°C to 55°C

Storage Temperature


-40°C to 70°C

Humidity


5% to 95% (non-condensing)

Ambient Light


0~100,OOOlux (natural light)

Certifications



FCC Parti 5 Class B,CE EMC Class B, RoHS2.0, IEC62471

Accessories

EVK-N1

Software development board for the NLS-N1, equipped with a trigger button, beeper and RS-232 & USBType-C interfaces.


Cable

USB Used to connect the EVK-N1 to a host device.

RS-232 Used to connect the EVK-N1 to a host device.
