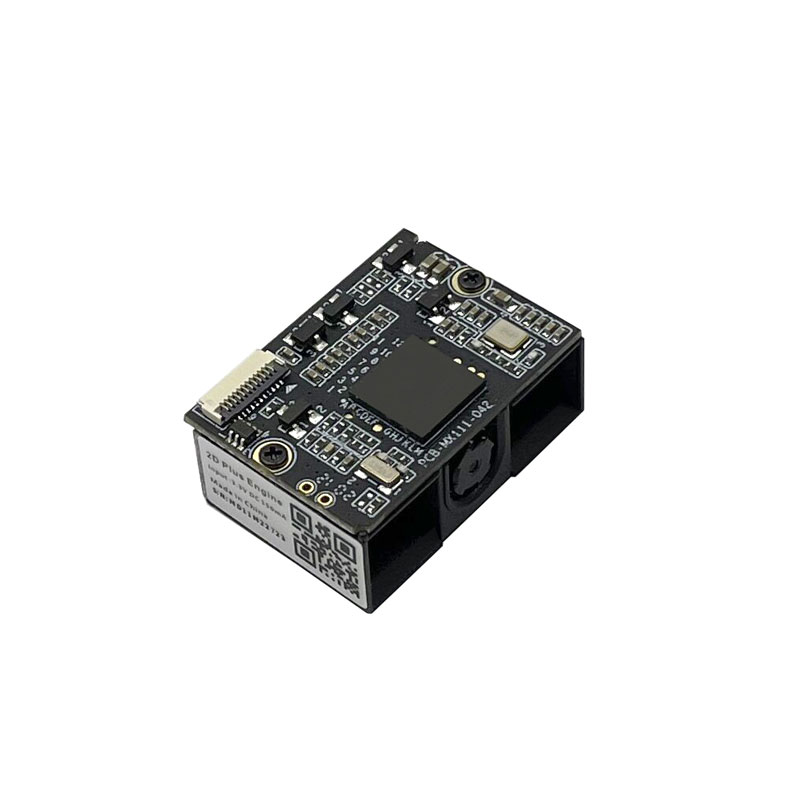

RD11C OEM Scanner Module for Arduino

Share :
  • Product Description
  • Product Parameters
  • Download

This is a lightweight two-dimensional scanning engine that can work stably and uninterrupted for a long time


Features of QR Codes Scanner

* Support high-performance 1D/2D barcode scanning

* Minimal OEM development model

* Can quickly read the QR code of mobile payment

* Provide LED and Buzzer indicator interface

* High Performance & Ultra-Low Power Consumption

* Multiple Interfaces


RD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for ArduinoRD11C OEM Scanner Module for Arduino

Specification

Optical System

640 pixels(H)x 480 pixels(V)

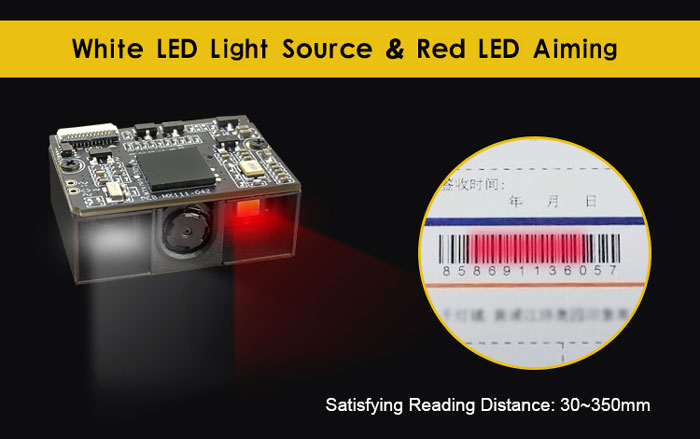

Illumination Element

Aiming: 617nm LED; Illumination 3200K White LED

Depth of Field

40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90%

Scan Angle

38° (H) x 25° (V)

Min. Bar Width

0.1mm(4mil)@Code 39, PCS=90%

Scan Mode

Trigger mode, Auto-sensing, Continuous scan, Pulse mode

Print Contrast

> 30%(UPC/EAN 100% , PCS 90%)

System Interface

TTL232 (12pin), USB 1.1 (HID KeyboardVirtual COM Port)

Depth of Field


Physical Characteristics

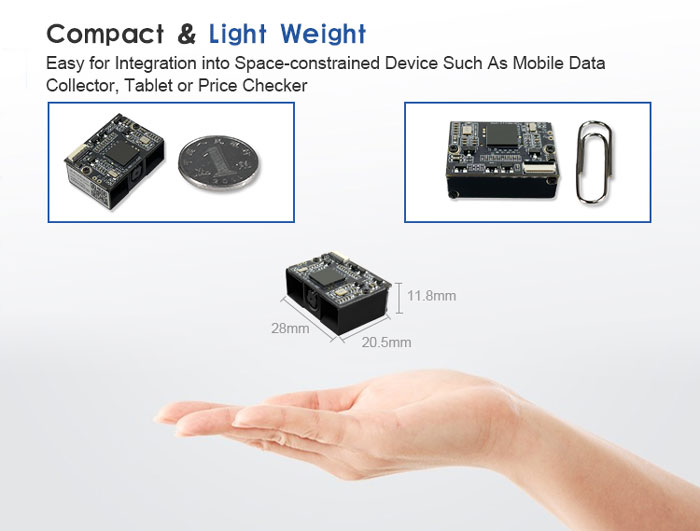

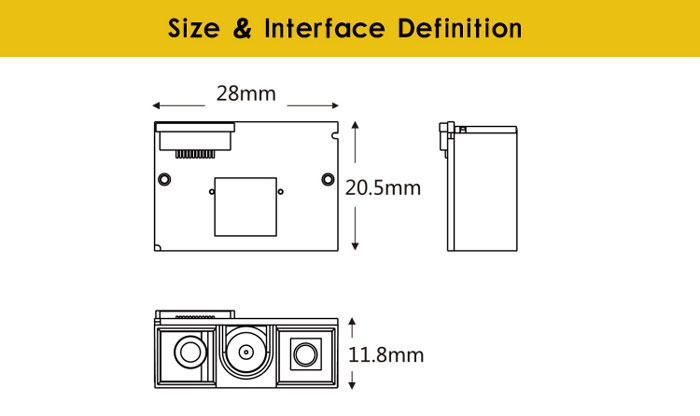

Dimensions

28.2mm x 20.5mm x 11.8mm

Weight

About 5g

Input Voltage

DC 3.3V±5%

Operating Current

130 mA ±5%Typical, 300 mA ±5%Max.

REGULATORY

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environment & Safety

Operating

Temperature

-20~50

Humidity

5%~95% (non-condensing)

Storage

Temperature

-40~+70

Light Level

0~100,000Luxfluorescence

Decoding Capability

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII),

Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA

Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded



PDF417 MicroPDF417

Data Matrix QR Code Micro QR Code   Aztec Code Maxi Code Reads barcode reliably of cell phone screens
